Module 05: Governance Risk and Compliance

In this exercise you will go through the Compliance features that come with Red Hat Advanced Cluster Management for Kubernetes. You will apply a number of policies to the cluster in order to comply with global security and management standards.

This exercise depends on the ArgoCD-deployed webserver application from Exercise 4. The application should already be running in the webserver-dev namespace on standard-cluster. If the application is not running, go back to Exercise 4 and deploy the ApplicationSet first.

Context note: Most commands in this exercise run on the hub cluster (<hub> $). Some verification steps require access to standard-cluster (<managed cluster> $). Set up named contexts now so you can switch easily without re-logging in. If you haven’t already obtained the credentials, retrieve them from the hub (see also Exercise 2):

# Name your current hub context:
<hub> $ oc config rename-context $(oc config current-context) hub

# Retrieve the standard-cluster credentials and API URL:
<hub> $ SECRET_NAME=$(oc get clusterdeployment standard-cluster -n standard-cluster \
         -o jsonpath='{.spec.clusterMetadata.adminPasswordSecretRef.name}')
<hub> $ STANDARD_PWD=$(oc get secret $SECRET_NAME -n standard-cluster -o jsonpath='{.data.password}' | base64 -d)
<hub> $ STANDARD_URL=$(oc get managedcluster standard-cluster -o jsonpath='{.spec.managedClusterClientConfigs[0].url}')

# Log into standard-cluster and name its context:
<hub> $ oc login -u kubeadmin -p $STANDARD_PWD $STANDARD_URL
       $ oc config rename-context $(oc config current-context) standard-cluster

# Switch back to the hub:
       $ oc config use-context hub

From now on, switch contexts with:

$ oc config use-context hub                # for <hub> $ commands
$ oc config use-context standard-cluster   # for <managed cluster> $ commands

Verify the webserver application is running on standard-cluster:

$ oc config use-context standard-cluster
<standard-cluster> $ oc get pods -n webserver-dev
$ oc config use-context hub

Step 1 — Create the policies namespace

Before creating any policies, you must create a namespace to hold the policy CRs. This step is required — policies will fail to apply without it.

If you completed Module 01 Step 4 (GPU Operator policy), the rhacm-policies namespace already exists. The commands below are idempotent (oc apply) so it is safe to run them again — this step adds the all-clusters ManagedClusterSetBinding that the GPU step did not create.

<hub> $ cat > policies-namespace.yaml << EOF
---
apiVersion: v1
kind: Namespace
metadata:
  name: rhacm-policies
---
apiVersion: cluster.open-cluster-management.io/v1beta2
kind: ManagedClusterSetBinding
metadata:
  name: all-clusters
  namespace: rhacm-policies
spec:
  clusterSet: all-clusters
EOF

<hub> $ oc apply -f policies-namespace.yaml

The ManagedClusterSetBinding binds the all-clusters ManagedClusterSet to the rhacm-policies namespace. Exercise 4 placed standard-cluster into the all-clusters set, so this binding is required for Placement resources to select it.

Step 2 — Create the Placement resource

Create a Placement resource to associate the policies below with all clusters that have the environment=dev label (i.e., standard-cluster).

<hub> $ cat > placementrule-policies.yaml << EOF
---
apiVersion: cluster.open-cluster-management.io/v1beta1
kind: Placement
metadata:
  name: prod-policies-clusters
  namespace: rhacm-policies
spec:
  predicates:
    - requiredClusterSelector:
        labelSelector:
          matchLabels:
            environment: dev
EOF

<hub> $ oc apply -f placementrule-policies.yaml

Verify that the Placement successfully selected standard-cluster:

<hub> $ oc get placement prod-policies-clusters -n rhacm-policies
NAME                     SUCCEEDED   REASON                  SELECTEDCLUSTERS
prod-policies-clusters   True        AllDecisionsScheduled   1

Policy #1 - Network Security

In this section you will apply a NetworkPolicy object onto the cluster in order to limit access to the webserver application deployed in Exercise 4. You will only allow traffic that comes from OpenShift’s Ingress Controller in port 8080. All other traffic will be dropped.

The policy you’ll create in this section will use the enforce remediation action in order to create the NetworkPolicy objects if they do not exist.

We will configure the policy definition in two stages -

Stage 1 - Deny all traffic to the application namespace

The policy you will configure in this section is enforcing a deny all NetworkPolicy in the webserver-dev namespace on the managed cluster. A deny all NetworkPolicy object example -

kind: NetworkPolicy
apiVersion: networking.k8s.io/v1
metadata:
  name: deny-by-default
spec:
  podSelector:
  ingress: []

In order to create a deny all NetworkPolicy object on the managed cluster using Red Hat Advanced Cluster Management for Kubernetes, apply the next commands to the hub cluster -

<hub> $ cat > denyall-networkpolicy-policy.yaml << EOF
---
apiVersion: policy.open-cluster-management.io/v1
kind: Policy
metadata:
  name: policy-networkpolicy-webserver
  namespace: rhacm-policies
  annotations:
    policy.open-cluster-management.io/standards: NIST SP 800-53
    policy.open-cluster-management.io/categories: SC System and Communications Protection
    policy.open-cluster-management.io/controls: SC-7 Boundary Protection
spec:
  remediationAction: enforce
  disabled: false
  policy-templates:
    - objectDefinition:
        apiVersion: policy.open-cluster-management.io/v1
        kind: ConfigurationPolicy
        metadata:
          name: policy-networkpolicy-denyall-webserver
        spec:
          remediationAction: enforce # the policy-template spec.remediationAction is overridden by the preceding parameter value for spec.remediationAction.
          severity: medium
          namespaceSelector:
            include: ["webserver-dev"]
          object-templates:
            - complianceType: musthave
              objectDefinition:
                kind: NetworkPolicy
                apiVersion: networking.k8s.io/v1
                metadata:
                  name: deny-by-default
                  namespace: webserver-dev
                spec:
                  podSelector:
                  ingress: []
---
apiVersion: policy.open-cluster-management.io/v1
kind: PlacementBinding
metadata:
  name: binding-policy-networkpolicy-webserver
  namespace: rhacm-policies
placementRef:
  name: prod-policies-clusters
  kind: Placement
  apiGroup: cluster.open-cluster-management.io
subjects:
- name: policy-networkpolicy-webserver
  kind: Policy
  apiGroup: policy.open-cluster-management.io
EOF

<hub> $ oc apply -f denyall-networkpolicy-policy.yaml

The above command creates two objects Policy and PlacementBinding.

The Policy objects define the NetworkPolicy that will be deployed on the managed cluster. It associates the NetworkPolicy to the webserver-dev namespace, and enforces it.
The PlacementBinding resource associates the Policy object with the Placement resource that was created at the beginning of the exercise. Thereby, allowing the Policy to apply to all clusters with the environment=dev label.

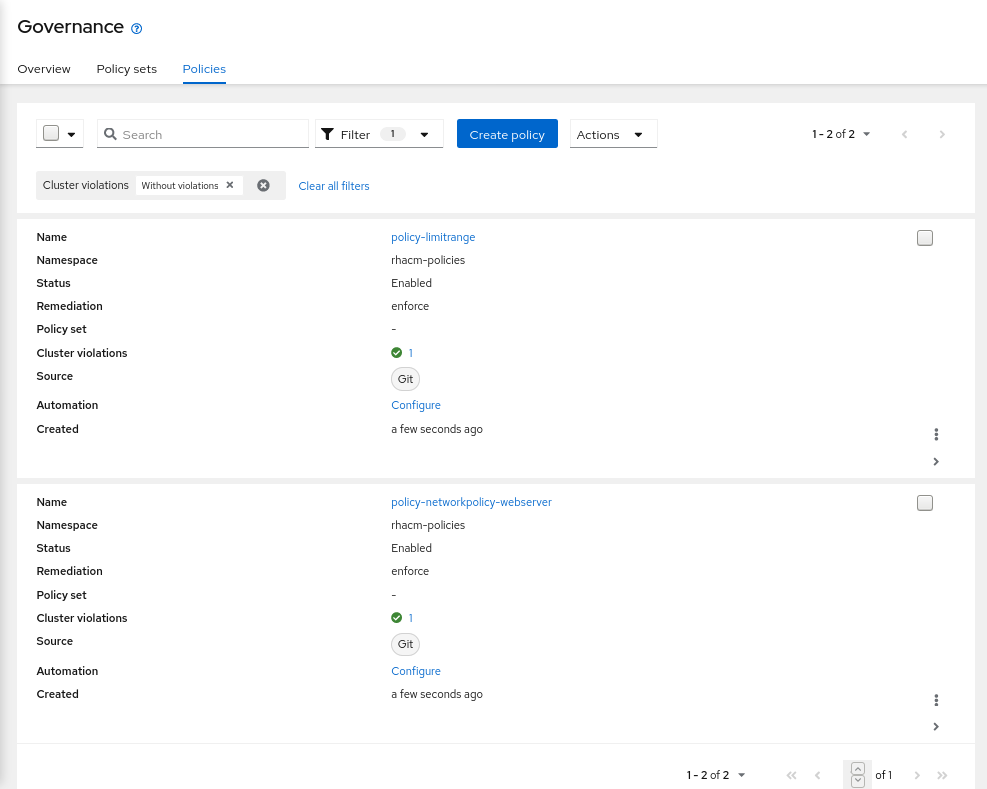

After the creation of the objects, navigate to Governance → Policies in the Red Hat Advanced Cluster Management for Kubernetes console. Note that the policy is configured, and the managed cluster is compliant.

Make sure that the policy is effective by trying to navigate to the application once again - https://<webserver application route>/application.html. (The application should not be accessible).

In order to understand the difference between the various complianceType values you can consult https://access.redhat.com/documentation/en-us/red_hat_advanced_cluster_management_for_kubernetes/2.15/html-single/governance/index#configuration-policy-yaml-table:

musthave will enforce the object and a subset of the fields
mustonlyhave will enforce the object with name and all of its fields
mustnothave will enforce that an object with the same name or labels must not exist

Stage 2 - Allow traffic from the Ingress Controller

In this section, you will modify the policy you have created in the previous section. You will add another ObjectDefinition entry to the policy. The ObjectDefinition will apply a second NetworkPolicy object onto the webserver-dev namespace in the managed cluster. The NetworkPolicy object will allow traffic from the Ingress Controller to reach the webserver application in port 8080. An example definition of the NetworkPolicy object -

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-from-openshift-ingress
spec:
  ingress:
  - ports:
    - protocol: TCP
      port: 8080
  - from:
    - namespaceSelector:
        matchLabels:
          network.openshift.io/policy-group: ingress
  podSelector: {}
  policyTypes:
  - Ingress

Adding the NetworkPolicy to the existing policy can be done by running the next command -

<hub> $ cat > networkpolicy-policy.yaml << EOF
---
apiVersion: policy.open-cluster-management.io/v1
kind: Policy
metadata:
  name: policy-networkpolicy-webserver
  namespace: rhacm-policies
  annotations:
    policy.open-cluster-management.io/standards: NIST SP 800-53
    policy.open-cluster-management.io/categories: SC System and Communications Protection
    policy.open-cluster-management.io/controls: SC-7 Boundary Protection
spec:
  remediationAction: enforce
  disabled: false
  policy-templates:
    - objectDefinition:
        apiVersion: policy.open-cluster-management.io/v1
        kind: ConfigurationPolicy
        metadata:
          name: policy-networkpolicy-denyall-webserver
        spec:
          remediationAction: enforce # the policy-template spec.remediationAction is overridden by the preceding parameter value for spec.remediationAction.
          severity: medium
          namespaceSelector:
            include: ["webserver-dev"]
          object-templates:
            - complianceType: musthave
              objectDefinition:
                kind: NetworkPolicy
                apiVersion: networking.k8s.io/v1
                metadata:
                  name: deny-by-default
                  namespace: webserver-dev
                spec:
                  podSelector:
                  ingress: []
    - objectDefinition:
        apiVersion: policy.open-cluster-management.io/v1
        kind: ConfigurationPolicy
        metadata:
          name: policy-networkpolicy-allow-ingress-webserver
        spec:
          remediationAction: enforce # the policy-template spec.remediationAction is overridden by the preceding parameter value for spec.remediationAction.
          severity: medium
          namespaceSelector:
            include: ["webserver-dev"]
          object-templates:
            - complianceType: musthave
              objectDefinition:
                kind: NetworkPolicy
                apiVersion: networking.k8s.io/v1
                metadata:
                  name: allow-ingress-8080
                  namespace: webserver-dev
                spec:
                  ingress:
                  - ports:
                    - protocol: TCP
                      port: 8080
                  - from:
                    - namespaceSelector:
                        matchLabels:
                          network.openshift.io/policy-group: ingress
                  podSelector: {}
                  policyTypes:
                  - Ingress
---
apiVersion: policy.open-cluster-management.io/v1
kind: PlacementBinding
metadata:
  name: binding-policy-networkpolicy-webserver
  namespace: rhacm-policies
placementRef:
  name: prod-policies-clusters
  kind: Placement
  apiGroup: cluster.open-cluster-management.io
subjects:
- name: policy-networkpolicy-webserver
  kind: Policy
  apiGroup: policy.open-cluster-management.io
EOF

<hub> $ oc apply -f networkpolicy-policy.yaml

After applying the above policy, the application will be reachable from OpenShift’s ingress controller only. Any other traffic will be dropped.

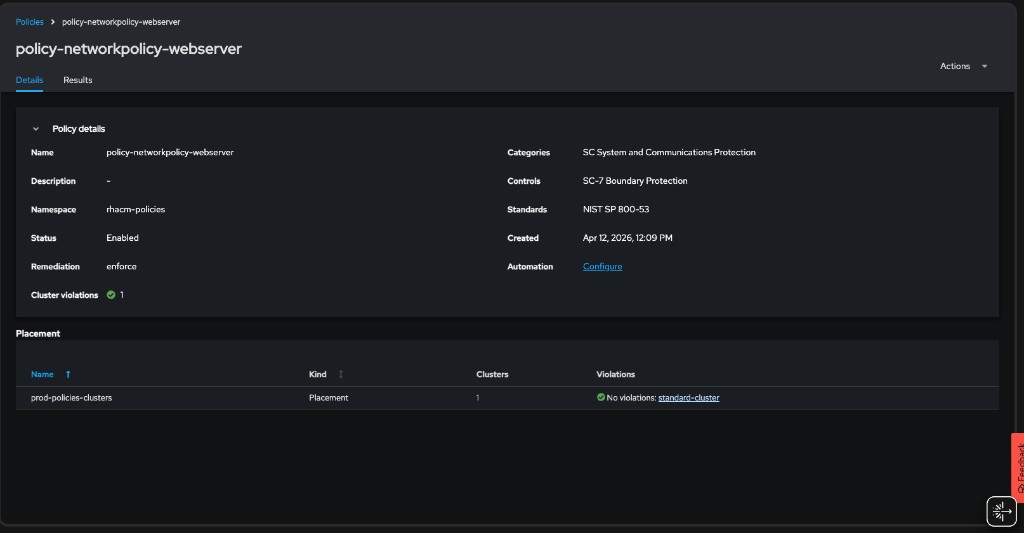

Make sure that the managed cluster is compliant to the policy by navigating to Governance → Policies in the Red Hat Advanced Cluster Management for Kubernetes console.

Make sure that the application is accessible now at - https://<webserver application route>/application.html.

Policy #2 - Quota Management

In this section you will apply a LimitRange object onto the cluster in order to limit the application’s resource consumption. You will configure a LimitRange object that limits the application’s container memory to 512Mb.

The policy you will create defines the next LimitRange object in the webserver-dev namespace -

apiVersion: v1
kind: LimitRange # limit memory usage
metadata:
  name: webserver-limit-range
spec:
  limits:
  - default:
      memory: 512Mi
    defaultRequest:
      memory: 256Mi
    type: Container

In order to apply the LimitRange object to the managed cluster using Red Hat Advanced Cluster Management for Kubernetes, run the next commands -

<hub> $ cat > limitrange-policy.yaml << EOF
apiVersion: policy.open-cluster-management.io/v1
kind: Policy
metadata:
  name: policy-limitrange
  namespace: rhacm-policies
  annotations:
    policy.open-cluster-management.io/standards: NIST SP 800-53
    policy.open-cluster-management.io/categories: SC System and Communications Protection
    policy.open-cluster-management.io/controls: SC-6 Resource Availability
spec:
  remediationAction: enforce
  disabled: false
  policy-templates:
    - objectDefinition:
        apiVersion: policy.open-cluster-management.io/v1
        kind: ConfigurationPolicy
        metadata:
          name: policy-limitrange-example
        spec:
          remediationAction: enforce # the policy-template spec.remediationAction is overridden by the preceding parameter value for spec.remediationAction.
          severity: medium
          namespaceSelector:
            include: ["webserver-dev"]
          object-templates:
            - complianceType: mustonlyhave
              objectDefinition:
                apiVersion: v1
                kind: LimitRange # limit memory usage
                metadata:
                  name: webserver-limit-range
                  namespace: webserver-dev
                spec:
                  limits:
                  - default:
                      memory: 512Mi
                    defaultRequest:
                      memory: 256Mi
                    type: Container
---
apiVersion: policy.open-cluster-management.io/v1
kind: PlacementBinding
metadata:
  name: binding-policy-limitrange
  namespace: rhacm-policies
placementRef:
  name: prod-policies-clusters
  kind: Placement
  apiGroup: cluster.open-cluster-management.io
subjects:
- name: policy-limitrange
  kind: Policy
  apiGroup: policy.open-cluster-management.io
EOF

<hub> $ oc apply -f limitrange-policy.yaml

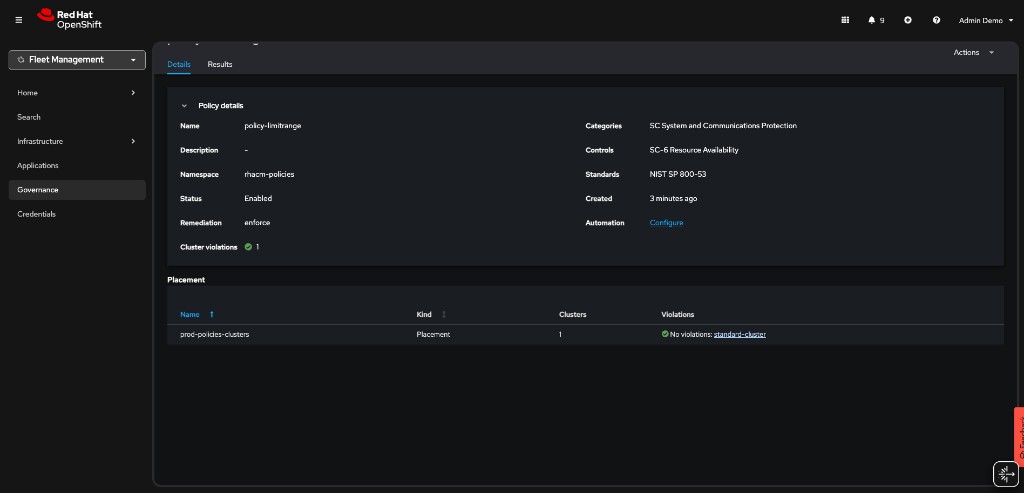

Make sure that the managed cluster is compliant to the policy by navigating to Governance → Policies in the Red Hat Advanced Cluster Management for Kubernetes console.

Make sure that the LimitRange object is created in your managed cluster -

Validate that the LimitRange object is created in the webserver-dev namespace -

<managed cluster> $ oc get limitrange webserver-limit-range -o yaml -n webserver-dev

As the admin user in the managed cluster, try to modify the values of the LimitRange resource. Change the default memory limit from 512Mi to 1024Mi, save, and exit the editor:

<managed cluster> $ oc whoami
kube:admin

<managed cluster> $ oc edit limitrange/webserver-limit-range -n webserver-dev

Notice that if you list the LimitRange resource again, the value of the memory limit is back to 512Mi. The 1024Mi value was overridden by the Red Hat Advanced Cluster Management’s policy controller. Changing the LimitRange’s values is only possible by editing the Policy object on the hub cluster.

<managed cluster> $ oc get limitrange webserver-limit-range -o yaml -n webserver-dev
...
  limits:
  - default:
    memory: 512Mi
...

Policy #3 - Namespace management

In this section, you will create a policy that informs if a namespace with the name rhacm-dangerous-policy-namespace is present. Make sure to create the policy in the rhacm-policies namespace You may use the workshop presentation and the policies you’ve created in this exercise as a reference for the creation of this policy.

After deploying the policy, make sure that it is in a compliant state.

Create a namespace with the rhacm-dangerous-policy-namespace name on the managed cluster. Make sure that a violation is initiated.

<managed cluster> $ oc create namespace rhacm-dangerous-policy-namespace

Change the remediationAction in your policy to enforce. The violation should be remediated.

Using GitOps

In this section you will use RHACM’s built-in GitOps mechanism to manage your policies. You will deploy the above policies, and manage them in a GitOps friendly way.

Before you start this section of the exercise, make sure you delete the namespace containing the policies you used in the previous section.

<hub> $ oc delete project rhacm-policies

For this exercise, create a fork of the next GitHub repository - https://github.com/tosin2013/rhacm-workshop

As a result, you will have your own version of the repository - https://github.com/<your-username>/rhacm-workshop
Afterwards, create a namespace on which you will deploy the RHACM resources (Use the namespace.yaml file in the forked repository) -

<hub> $ oc apply -f https://raw.githubusercontent.com/<your-github-username>/rhacm-workshop/master/05.Governance-Risk-Compliance/exercise/namespace.yaml

Now, clone the official policy-collection GitHub repository to your machine. The repository contains a binary named deploy.sh. The binary is used to associate policies in a GitHub repository to a running Red Hat Advanced Cluster Management for Kubernetes cluster.

<hub> $ git clone https://github.com/open-cluster-management-io/policy-collection.git

<hub> $ cd policy-collection/deploy/

If you are already logged in as a non-kubeadmin user with cluster-admin privileges (e.g. admin), skip steps 4.a through 4.d entirely. In step 5 below, replace workshop-admin with your current username (run oc whoami to check). Do NOT run the oc replace -f oauth.yaml command if your cluster already has an identity provider configured — it will overwrite your existing provider.

4.a. If you are using the kubeadmin user, create an identity provider by running the next commands (It is not possible to create policies via GitOps using the kubeadmin user). The identity provider will create the workshop-admin user -

Install httpd tools if missing.

sudo dnf install httpd-tools -y

<hub> $ htpasswd -c -B -b htpasswd workshop-admin redhat

<hub> $ oc create secret generic localusers --from-file htpasswd=htpasswd -n openshift-config

<hub> $ oc adm policy add-cluster-role-to-user cluster-admin workshop-admin

<hub> $ oc get -o yaml oauth cluster > oauth.yaml

4.b. Edit the oauth.yaml file. The result should look like -

apiVersion: config.openshift.io/v1
kind: OAuth
...output omitted...
spec:
  identityProviders:
  - htpasswd:
      fileData:
        name: localusers
    mappingMethod: claim
    name: local-users
    type: HTPasswd

4.c. Replace the cluster’s identity provider by running the next command -

<hub> $ oc replace -f oauth.yaml

4.d. Login with the created user -

<hub> $ oc login -u workshop-admin -p redhat

Run the next command to allow your username deploy policies via Git (If you’re not using the workshop-admin user to run the command, make sure to edit the command in order to associate your user with the subscription-admin ClusterRole. Make sure to run the command even if you are using an administrative user!) -

<hub> $ oc patch clusterrolebinding.rbac open-cluster-management:subscription-admin -p '{"subjects": [{"apiGroup":"rbac.authorization.k8s.io", "kind":"User", "name":"workshop-admin"}]}'

You can now deploy the policies from your forked repository to Advanced Cluster Management.

<hub> $ ./deploy.sh --url https://github.com/<your-github-username>/rhacm-workshop.git --branch master --path 05.Governance-Risk-Compliance/exercise/exercise-policies --namespace rhacm-policies

Make sure that the policies are deployed in the Governance → Policies tab in the Advanced Cluster Management for Kubernetes console.

Edit the LimitRange policy in https://github.com/<your-username>/rhacm-workshop/blob/master/05.Governance-Risk-Compliance/exercise/exercise-policies/limitrange-policy.yaml. Change the default container limit from 512Mi to 1024Mi.
Make sure that you commit, and push the change to your fork.
Log into managed cluster. Make sure that the change in GitHub was applied to the LimitRange resource.

<managed cluster> $ oc get limitrange webserver-limit-range -o yaml -n webserver-dev
...
  limits:
  - default:
    memory: 1Gi
...

Templating Policies

In this section you will use RHACM’s templating mechanism for governance policies. In this scenario, you will create an RHACM application. The application deploys a mariadb database and a Prometheus exporter (mysqld-exporter) that connects to the database and exports metrics.

The mysqld-exporter requires mariadb’s connection information in order to connect to the database and export the metrics. Since secrets like database passwords can be automatically generated in production environments, it might be required to use a dynamic template that passes such information to the exporter’s configuration.

In this scenario, you will pass two templated variables to the mysqld-exporter deployment using a dedicated ConfigMap resource. The variables are merged into a single connection string that the exporter uses to connect to the mariadb database.

mariadb Service endpoint - The ConfigMap will populate the mariadb Service resource ClusterIP dynamically. The service endpoint might be different between managed clusters, using a template in this scenario can help the stability of the system. The lookup function is used to identify the service’s ClusterIP - {{ (lookup "v1" "Service" "mariadb-metrics" "mariadb").spec.clusterIP }}.
mariadb Root password - The ConfigMap will provide the connection password dynamically. The password can be different for database instances in multi cluster environments. Using a template in this scenario can solve inconsistencies between clusters. The fromSecret function is used to pull the password from mariadb’s secret - {{ ( fromSecret "mariadb-metrics" "mariadb" "MYSQL_ROOT_PASSWORD" ) | base64dec }}

To further understand the structure of the application, go over the application resources. All of the application resources are present in this directory besides the ConfigMap resource which is created using a templated policy.

The next templated policy is used to create the ConfigMap resource that the exporter uses as a connection string -

kind: ConfigMap
apiVersion: v1
metadata:
  name: metrics-connection-string
  namespace: mariadb-metrics
data:
  connection_string: 'root:{{ ( fromSecret "mariadb-metrics" "mariadb" "MYSQL_ROOT_PASSWORD" ) | base64dec }}@({{ (lookup "v1" "Service" "mariadb-metrics" "mariadb").spec.clusterIP }}:3306)/'

Deploy the templated policy by running the next command on the hub cluster -

<hub> $ oc apply -f https://raw.githubusercontent.com/tosin2013/rhacm-workshop/master/05.Governance-Risk-Compliance/exercise/exercise-templates/metrics-configmap.yaml

The policy will appear at the Governance dashboard at a non-compliant state. The policy depends on the mariadb Secret resource and the mariadb Service resource. Since you have not created them yet, the policy is not able to create the desired ConfigMap resource.

Deploy the mariadb-metrics application in order to create the mariadb and exporter instances. Deploy the application by running the next command -

<hub> $ oc apply -f https://raw.githubusercontent.com/tosin2013/rhacm-workshop/master/05.Governance-Risk-Compliance/exercise/exercise-application/rhacm-resources/application.yaml

Wait until the application is available. After the application is available, make sure that the policy you have deployed is compliant in the Governance dashboard. Make sure that the template worked by running the next command on the managed cluster.

<managed cluster> $ oc get configmap metrics-connection-string -o yaml -n mariadb-metrics
apiVersion: v1
data:
  connection_string: root:cmVkaGF0@(172.30.14.60:3306)/
kind: ConfigMap
metadata:
  name: metrics-connection-string
  namespace: mariadb-metrics

Navigate to the URL exported by the Route resource in the mariadb-metrics namespace. The Route exposes the mariadb metrics from the exporter instance.

<managed cluster> $ oc get route -n mariadb-metrics
NAME              HOST/PORT                                                                       PATH   SERVICES          PORT       TERMINATION   WILDCARD
mysqld-exporter   mysqld-exporter-mariadb-metrics.apps.cluster-6f0a.6f0a.sandbox664.opentlc.com          mysqld-exporter   9104-tcp   edge          None

Mariadb metrics are presented by running the next command -

<managed cluster> $ curl https://<route>/metrics -k
...
# HELP go_memstats_heap_inuse_bytes Number of heap bytes that are in use.
# TYPE go_memstats_heap_inuse_bytes gauge
go_memstats_heap_inuse_bytes 3.80928e+06
# HELP go_memstats_heap_objects Number of allocated objects.
# TYPE go_memstats_heap_objects gauge
go_memstats_heap_objects 7487
# HELP go_memstats_heap_released_bytes Number of heap bytes released to OS.
# TYPE go_memstats_heap_released_bytes gauge
go_memstats_heap_released_bytes 6.270976e+07
# HELP go_memstats_heap_sys_bytes Number of heap bytes obtained from system.
# TYPE go_memstats_heap_sys_bytes gauge
go_memstats_heap_sys_bytes 6.668288e+07
# HELP go_memstats_last_gc_time_seconds Number of seconds since 1970 of last garbage collection.
# TYPE go_memstats_last_gc_time_seconds gauge
go_memstats_last_gc_time_seconds 0
# HELP go_memstats_lookups_total Total number of pointer lookups.
# TYPE go_memstats_lookups_total counter
go_memstats_lookups_total 0
# HELP go_memstats_mallocs_total Total number of mallocs.
# TYPE go_memstats_mallocs_total counter
go_memstats_mallocs_total 8093
# HELP go_memstats_mcache_inuse_bytes Number of bytes in use by mcache structures.
# TYPE go_memstats_mcache_inuse_bytes gauge
go_memstats_mcache_inuse_bytes 19200
# HELP go_memstats_mcache_sys_bytes Number of bytes used for mcache structures obtained from system.
# TYPE go_memstats_mcache_sys_bytes gauge
go_memstats_mcache_sys_bytes 32768
# HELP go_memstats_mspan_inuse_bytes Number of bytes in use by mspan structures.
# TYPE go_memstats_mspan_inuse_bytes gauge
go_memstats_mspan_inuse_bytes 63376
# HELP go_memstats_mspan_sys_bytes Number of bytes used for mspan structures obtained from system.
# TYPE go_memstats_mspan_sys_bytes gauge
go_memstats_mspan_sys_bytes 65536
# HELP go_memstats_next_gc_bytes Number of heap bytes when next garbage collection will take place.
# TYPE go_memstats_next_gc_bytes gauge
go_memstats_next_gc_bytes 4.473924e+06
...
