animspec

Deterministic, declarative animation. An AnimSpec (JSON) plus a SignalFrame (audio, data or text reduced to numbers) renders to a frame, and the same spec, signal and seed always produce the same frame.

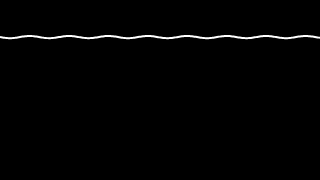

Every moving pixel on this site was drawn by the committed library from a fixed seed, and any machine can regenerate it byte for byte.

The promise

Situation	Guarantee
Same spec, signal and seed, on two machines of the same processor type	byte-identical frames
Same spec, signal and seed, on arm64 and on x64	every colour channel of every pixel within 8 out of 255
Any other processor type, or Windows	no guarantee; reported as unsupported

The supported processor types are arm64 and x64. The operating system is not part of the promise: macOS and Linux agree on the same processor type.

Install

npm install animspec

Node.js 22 or later, ESM only.

Quick start

Validate a spec, build a signal frame, draw it:

import { createCanvas } from "@napi-rs/canvas";
import { drawSpec, validateAnimSpec, type SignalFrame } from "animspec";

const { spec } = validateAnimSpec({
  background: "black",
  layers: [{ type: "grid" }, { type: "wave" }],
});

const frame: SignalFrame = {
  index: 0,
  t: 0,
  values: new Float64Array(64).fill(0.5),
  spectrum: new Float64Array(64).fill(0.25),
  amplitude: 0.5,
  energy: 0.4,
};

const dims = { width: 1280, height: 720 };
const ctx = createCanvas(dims.width, dims.height).getContext("2d");
drawSpec(ctx, dims, frame, spec!, {
  reducedFlicker: true,
  creative: false,
  seed: 1,
});

The user guide walks through the whole path: writing specs, building SignalFrames, rendering options, validating model output and choosing fonts.

Where to go

• Gallery: every primitive in the vocabulary, animating
• Contribute: the rule, the style rubric, the gates, and the path to a first pull request
• User guide: install, write a spec, render frames, troubleshoot
• Vocabulary: every primitive, its params, its tier
• Design document: the architecture, the ADRs, the gates
• npm and GitHub
